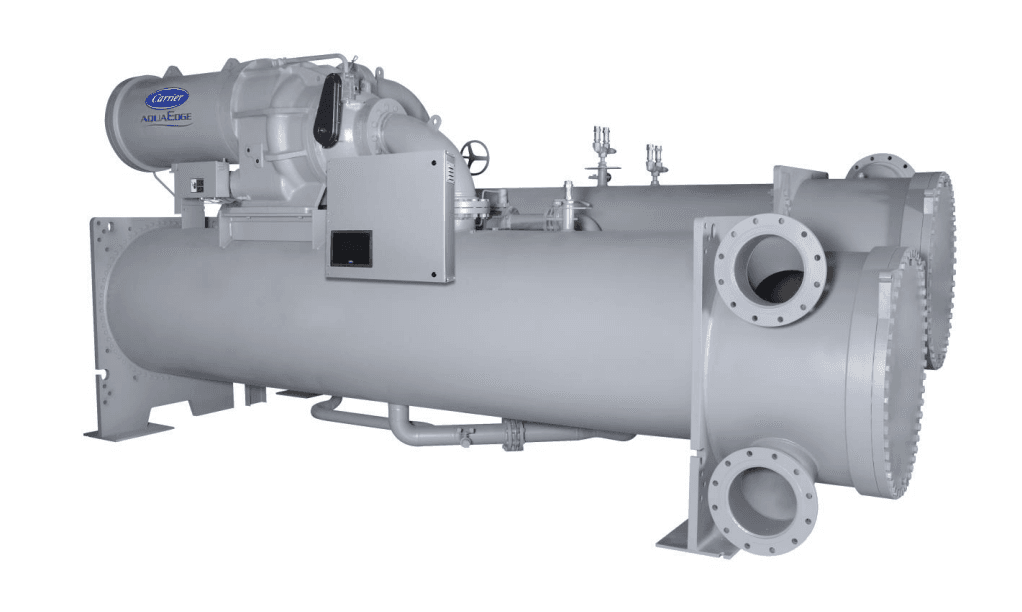

AquaEdge 19XR/XRV Water-cooled Centrifugal Chiller (1,400RT)
Carrier Corporation
Upfront Carbon Emissions
kg CO2e / unit (A1-A3)
kg CO2e / unit (A1-A3)
174,313.00
GWP - Fossil
174,000.00 kgCO2e
GWP - Biogenic
-236.00 kgCO2e
GWP - LULUC
313.00 kgCO2e
GWP - Stored
0.00 kgCO2e
This data has been generated from publicly available EPD data.
Upfront Carbon Emissions is a summation of Fossil, Biogenic and Land Use emissions. It does not include biogenic sequestration. This is consistent with NABERS database.
Upfront Carbon Emissions is a summation of Fossil, Biogenic and Land Use emissions. It does not include biogenic sequestration. This is consistent with NABERS database.
Do you have any questions on this data?
Please contact us
Please contact us
The Carrier 19XR/19XRV Water-Cooled Centrifugal Chillers deliver exceptional performance with a COP up to 6.5 (0.5822 kW/ton) and an IPLV up to 11.17 (0.3148 kW/ton) under AHRI conditions. These chillers achieve up to 6.8 EER utilizing Opteon™ XP10 (R-513A), a non-ozone depleting refrigerant, and are also compatible with Solstice® N15 (HFO-515B), a nonflammable azeotropic blend. The interstage economizer enhances efficiency and capacity, while the hermetic compressor features a dual-stage aerodynamic impeller and vane-less diffuser for stable high-lift applications. The motor is cooled by liquid refrigerant spray, and the 19XRV model includes a variable frequency drive for optimal energy efficiency. These chillers incorporate high-efficienc...
Product specifications
SKU
19XRV8484E51MEB64
Net weight
26,339.00 kg
Downloads
Environmental Product Declaration
PDF • 1.4MB
